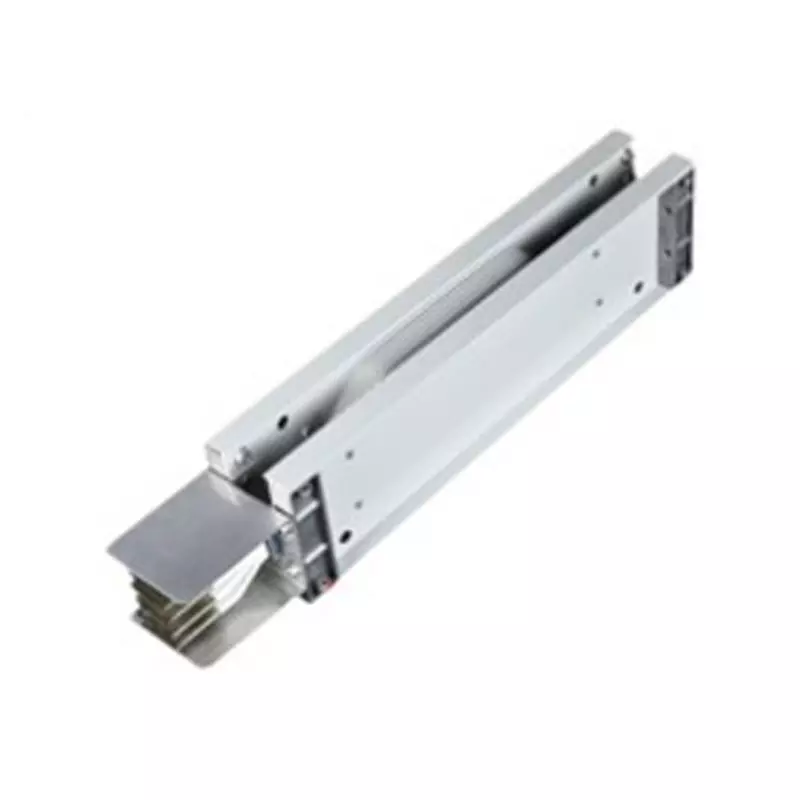

High-Density Busway System

Overview
Our high-density busway system is specifically designed for modern power distribution networks that demand maximum capacity, safety, and spatial efficiency. Tailored for data centers, industrial facilities, and high-rise commercial buildings, this system delivers reliable and scalable power transmission integrated with intelligent monitoring capabilities.

Key Features

• Compact & High-Capacity Design
  Achieves current ratings from 800A to 6300A within minimized cross-sectional dimensions.
  Saves up to 40% in installation space compared to conventional busway systems.
  Modular design supports vertical/horizontal layouts and flexible cabling arrangements.

• Enhanced Safety & Reliability
  Fully fire-rated robust construction (3‑hour integrity at 1000°C).
  IP68 protection rating for critical sections; standard IP55 rating.
  Low‑impedance aluminum/copper conductors with a temperature rise ≤55K.

• Integrated Smart Monitoring
  Built‑in sensors enable real‑time tracking of temperature, current, and power quality.
  Supports IoT connectivity for predictive maintenance and energy analytics.
  Optional arc‑flash detection and early fault warning system.

• Efficient Installation & Sustainability
  Tool‑free connection system reduces installation time by 60%.
  100% reusable and recyclable materials comply with green building standards.
  Low‑loss design (efficiency >99.5%) minimizes lifecycle carbon footprint.

Technical Specifications

• Standards: IEC 61439-6, GB 7251.6, UL 857

• Voltage: Up to 1000V AC / 1500V DC

• Short‑circuit withstand capability: 100kA/1 sec (rated)

• Insulation: Class B (130°C) or higher available

• Conductor options: Plated copper or aluminum alloy

Application Fields

• Hyperscale data centers and server farms

• Automotive / battery manufacturing plants

• High‑rise building vertical power risers

• Renewable energy plants (photovoltaic stations / wind converter stations)

• Ports and industrial automation facilities

Why Choose Our Solution?
As a technology‑driven ISO 9001 and ISO 14001 certified manufacturer, we combine rigorous testing with over 20 years of electrical engineering expertise. Our busway systems are validated by third‑party laboratories and deployed globally in mission‑critical projects—ensuring your infrastructure is supported by reliability designed for the future.
