Product Overview

The RL Series Intelligent Busway consists of our RL Series busway integrated with the RIMD Distribution Network Intelligent Online Monitoring System. It monitors and controls the operational status of starter boxes and plugs within the busway enclosure (comprehensive power measurement: voltage, current, frequency, active power, reactive power, power factor, active energy, reactive energy; 1st to 31st harmonics; temperature; humidity; leakage current; digital inputs; digital outputs, etc.). It continuously or periodically measures the temperature of busway connectors, providing comprehensive evaluation, display, and early warning of the monitored parameters. This enables management personnel to gain a complete, objective understanding of the power system, reduce power operation failures, and achieve optimal operation and maintenance outcomes.

The RL Series Intelligent Busway is a safe, reliable, compact, efficient, and customizable low-voltage power transmission solution. It can fully replace traditional low-voltage busways, saving time and space for users and installers. Additionally, the busway adopts a typical sandwich structure with compact conductor arrangement and integral heat dissipation, which further reduces its own power loss and voltage drop.

1. System Advantages

1. 24/7 remote online monitoring of low-voltage busway and environmental conditions, with automatic alerts for monitored parameters that exceed limits.

2. Graphical display with automatic recording of historical data and alarm information logs.

3. High compatibility in transmission protocols, utilizing LORA wireless transmission or RS485 communication.

2. System Functions

1. Automatically inspects the operating status of various low-voltage power distribution equipment, presenting precise monitoring results.

2. Real-time (comprehensive power measurement: voltage, current, frequency, active power, reactive power, power factor, active energy, reactive energy; 1st to 31st harmonics; temperature; humidity; leakage current; digital inputs; digital outputs, etc.) continuous or periodic monitoring and control; automatic alarm for abnormalities.

3. System Functions (Role/Impact)

1. Establishes an unmanned, automated, and intelligent management approach, promoting the realization and development of green power grids.

2. Provides strong technical support through 24/7 remote online operation and maintenance, enabling timely detection of equipment hidden dangers and troubleshooting.

3. Offers comprehensive monitoring and diverse display effects through data, graphics, and other integrated presentation methods.

4. Reduces the frequency of patrol inspections, improves inspection quality, and lowers maintenance costs.

Electricity is closely related to economic development and daily life; therefore, the power distribution system must operate stably and reliably. Deploying an intelligent distribution network monitoring system is essential, and such a system will also serve as effective support for achieving intelligent and automated power operation and maintenance.

4. Applicable Standards

GB/T 13729-2019 Remote Terminal Units
GB/T 15153.1-1998 Remote control equipment and systems – Part 2: Operating conditions – Section 1: Power supply and electromagnetic compatibility
GB/T 17626.4-2018 Electromagnetic compatibility – Testing and measurement techniques – Electrical fast transient/burst immunity test

R Series Intelligent Busway System Application Scenarios

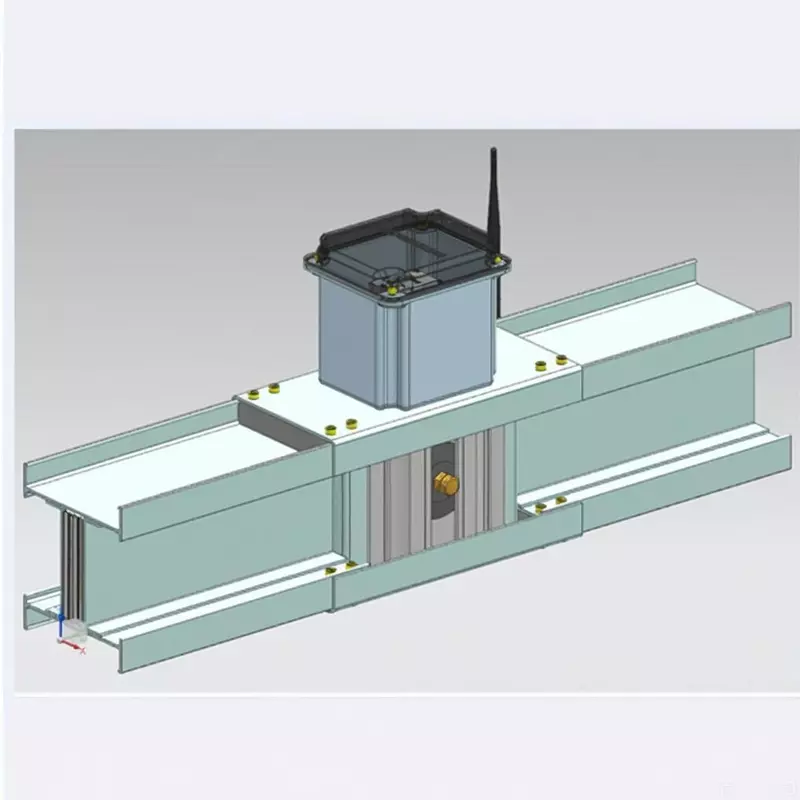

R Series Intelligent Busway Connector Temperature Measurement Module: This module is primarily responsible for collecting and transmitting the operating temperature data of the intelligent busway connector units for phases A, B, C, and N. When the operating temperature of a low-voltage busway connector unit exceeds the normal range or becomes abnormal due to busway overloading or other factors, it can promptly issue a fault alarm signal, ensuring the busway operates safely over the long term.

RL Series Intelligent Busway System Application Scenarios

RL Series Intelligent Busway Main Control Module: This module is primarily responsible for collecting and transmitting the operating status and electrical characteristic data (comprehensive power measurement: voltage, current, frequency, active power, reactive power, power factor, active energy, reactive energy; 1st to 31st harmonics; temperature; humidity; leakage current; digital inputs; digital outputs, etc.) of the starter box and plug-in box.
